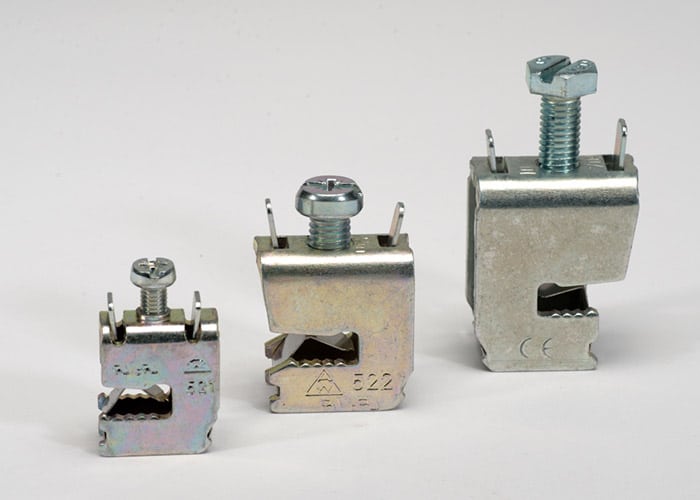

Conductor Connection Clamps
Conductor Connection Clamps are used for the drilling-free assembly of round conductors or on flat bars with a thickness of 5 mm.
Conductor Connection Clamps are used for the drilling-free assembly of round conductors or on flat bars with a thickness of 5 mm.
In modern electrical engineering and switch cabinet construction, secure and reliable connection of conductors is of crucial importance. Conductor connection clamps play a central role here, as they represent an innovative and time-saving alternative to conventional fastening methods. They are specially designed to mount round conductors such as cables on flat bars with a thickness of 5 mm without the need for time-consuming drilling.
In addition to being easy to install, the terminals guarantee optimum electrical conductivity and contact reliability. They avoid the reduction in conductor cross-section that could occur with drilling and ensure a large contact area. The clamps are versatile and can be used for main power conductors as well as for equipotential bonding or earthing systems. They are an indispensable element for anyone who values quick installation, maximum reliability and the highest level of safety.
Their greatest advantage lies in their drill-free installation technology. Manual drilling of flat bars or busbars, on the other hand, is a time-consuming process that requires precision and causes dirt and chips. The use of conductor connection clamps eliminates this step completely. This significantly reduces installation time, lowers the error rate and allows for flexible and subsequent positioning of the conductors.
| Typenbez. / Type | Art.-Nr. / Item no. | Anschluss / Connection [mm²] | max. Strombelastbarkeit / current carrying capacity [A] |
|---|---|---|---|
| LASK 16/5 | 90.010.410 | 1,5-16 | 180 |
| LASK 35/5 | 90.010.440 | 4-35 | 270 |
| LASK 70/5 | 90.010.470 | 16-70 | 400 |

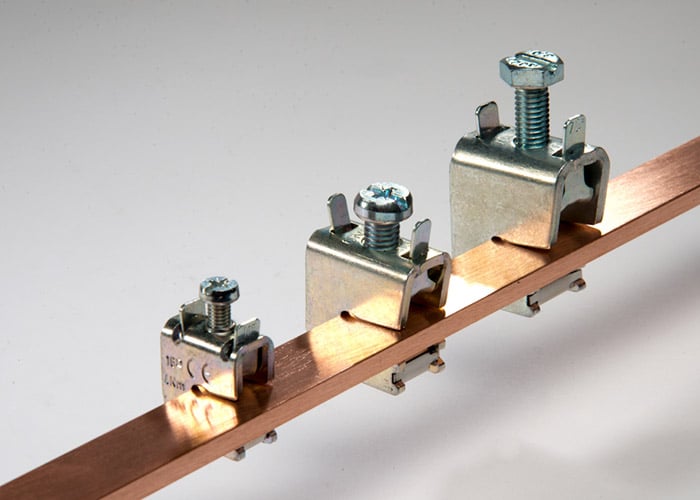

The terminals are simply placed on the 5 mm thick flat bars and tightened. This mechanical fastening ensures a permanently secure contact and high vibration resistance, which is particularly important in industrial applications.
The ease of use allows technicians to work faster and speed up the commissioning of systems.
