SPS has selected insulators on stock for different applications and requirements.

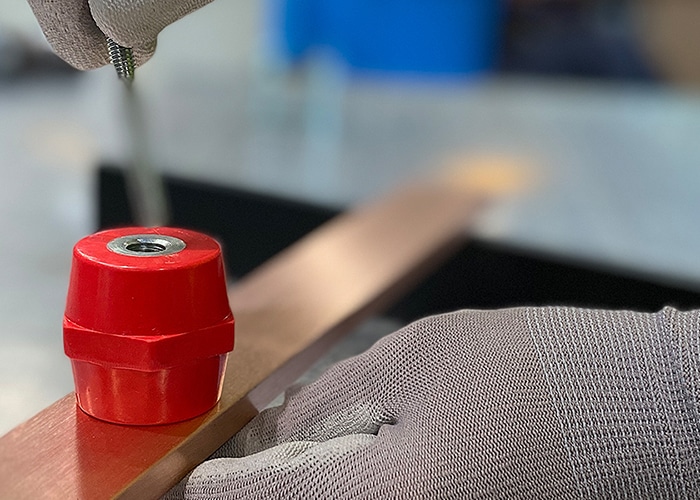

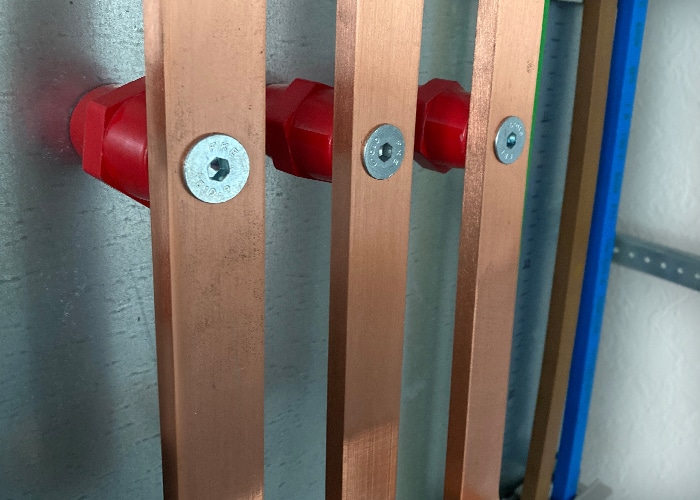

SPS insulators are used where bare high-current connectors such as copper busbars have to be attached, carried or routed.
Our insulators have a high mechanical load capacity and are made of solid insulating materials.
SPS insulators are silicone and halogen-free as well as self-extinguishing in accordance with UL 94 V0.

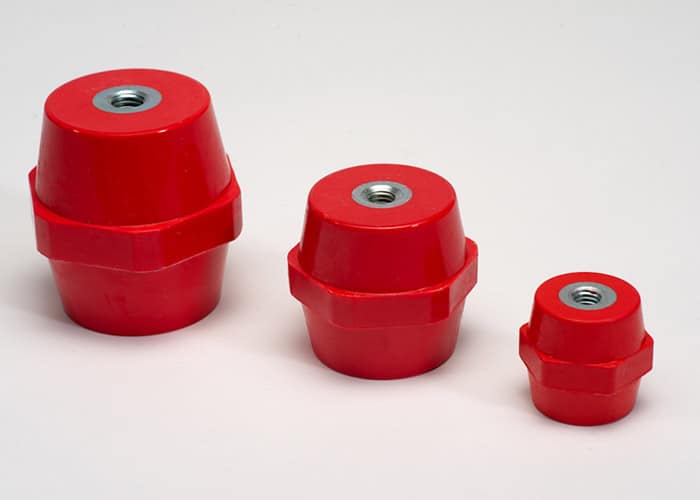

The red post insulators are made of glass fiber reinforced polyester with high mechanical stability and an operating temperature of max. 130 °C.
The threaded inserts on both sides are made of galvanized steel. A hexagon is integrated in the middle of the insulator for fixing with a common open-end wrench. The operating voltage heavily depends on the height of the insulator and only reaches values corresponding to phase voltage of 400 VAC for larger sizes. Otherwise supports between busbars of a phase, busbars with earth potential or for control switchgear can be implemented easily and inexpensively.
| Typenbez. / Type | Höhe / Height A [mm] | Bohrung / Drilling B [mm] | Durchmesser / Diameter C [mm] | Bohrtiefe / Drilling depth E [mm] | Biegefestigkeit / Bending strength [kN] | Zugfestigkeit [kN] | Drehmoment / Torque [Nm] | Bemessungsspannung / Rated voltage AC [V~] | Bemessungsspannung / Rated voltage DC [V=] | Art.-Nr. / Item no. |
|---|---|---|---|---|---|---|---|---|---|---|
| ISO 20M4 | 20 | 4 | 19 | 6 | 2 | 3 | 3 | 750 | 900 | 22/04/9002 |
| ISO 20M6 | 20 | 6 | 19 | 6 | 2 | 10 | 6 | 750 | 900 | 22/04/9002 |
| ISO 25M5 | 25 | 5 | 22 | 6 | 2 | 6 | 6 | 1.000 | 1.200 | 22/04/0070 |
| ISO 25M6 | 25 | 6 | 22 | 6 | 2 | 10 | 6 | 1.000 | 1.200 | 22/04/0080 |
| ISO 30M6 | 30 | 6 | 30 | 9 | 3 | 10 | 10 | 1.200 | 1.500 | 22/04/0090 |
| ISO 30M8 | 30 | 8 | 30 | 9 | 3 | 25 | 25 | 1.200 | 1.500 | 22/04/9002 |
| ISO 35M6 | 35 | 6 | 32 | 10 | 5 | 10 | 10 | 1.400 | 1.600 | 22/04/9002 |
| ISO 35M8 | 35 | 8 | 32 | 10 | 5 | 25 | 25 | 1.400 | 1.600 | 22/04/9002 |
| ISO 35M10 | 35 | 10 | 32 | 10 | 5 | 50 | 50 | 1.400 | 1.600 | 22/04/9002 |
| ISO 40M6 | 40 | 6 | 41 | 10 | 9 | 10 | 10 | 1.600 | 1.900 | 22/04/9002 |
| ISO 40M8 | 40 | 8 | 41 | 10 | 9 | 25 | 25 | 1.600 | 1.900 | 22/04/9002 |
| ISO 40M10 | 40 | 10 | 41 | 10 | 9 | 50 | 50 | 1.600 | 1.900 | 22/04/9002 |
| ISO 45M8 | 45 | 8 | 46 | 13 | 10 | 25 | 25 | 1.800 | 2.100 | 22/04/0170 |
| ISO 45M10 | 45 | 10 | 46 | 13 | 10 | 50 | 50 | 1.800 | 2.100 | 22/04/0180 |
| ISO 50M6 | 50 | 6 | 36 | 13 | 6 | 10 | 10 | 2.000 | 2.400 | 22/04/0190 |
| ISO 50M8 SW36 | 50 | 8 | 36 | 15 | 6 | 25 | 25 | 2.000 | 2.400 | 22/04/9002 |
| ISO 50M8 | 50 | 8 | 50 | 13 | 11 | 25 | 25 | 2.000 | 2.400 | 22/04/9002 |
| ISO 50M10 SW36 | 50 | 10 | 36 | 13 | 11 | 50 | 50 | 2.000 | 2.400 | 22/04/9002 |
| ISO 50M10 | 50 | 10 | 50 | 13 | 11 | 50 | 50 | 2.000 | 2.400 | 22/04/9002 |
| ISO 50M12 | 50 | 12 | 50 | 13 | 11 | 85 | 85 | 2.000 | 2.400 | 22/04/9002 |
| ISO 60M8 | 60 | 8 | 55 | 15 | 11 | 25 | 25 | 2.400 | 2.800 | 22/04/9002 |
| ISO 60M10 | 60 | 10 | 55 | 18 | 11 | 50 | 50 | 2.400 | 2.800 | 22/04/9002 |
| ISO 60M12 | 60 | 12 | 55 | 18 | 11 | 85 | 85 | 2.400 | 2.800 | 22/04/9002 |
| ISO 70M12 | 70 | 12 | 60 | 18 | 12 | 85 | 85 | 3.000 | 3.600 | 22/04/0280 |
| ISO 80M12 | 80 | 12 | 65 | 18 | 16 | 85 | 85 | 3.500 | 4.200 | 22/04/9002 |
| ISO 80M16 | 80 | 16 | 65 | 24 | 16 | 200 | 200 | 3.500 | 4.200 | 22/04/0360 |
| ISO 100M12 | 100 | 12 | 65 | 18 | 15 | 85 | 85 | 5.000 | 6.000 | 22/04/0370 |
| ISO 100M16 | 100 | 16 | 65 | 24 | 15 | 200 | 200 | 5.000 | 6.000 | 22/04/0380 |
